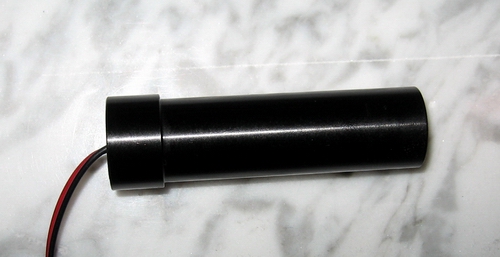

Red Uniform Line Laser
Red Uniform Line Laser，Using different power laser tube and collimating lens，Cylindrical lens coupled with different parameters of，
Produce different beam divergence of the uniform line，output power can be adjusted according to useness，Specific uses can be customized according to the user
Lasers are high-quality selection of original, imported laser diode，APC driver circuit coupled with high-performance coatings and optical glass lens group，With high reliability, high stability, strong anti-interference, consistency is good, long life and other characteristics
Products are mainly used for various mechanical processing, stone cutting position, tire production location, woodworking machinery, textile and garment positioning, industrial equipment, cast-line instrument type laser light source, laser scanning device for flatness, laser medical equipment, laser positioning, etc.
Outputl Power: 2mW
Fan angle: 30 ° -90 ° (according to customer's request)
Width: 1m Department width ≤ 0.5mm
Optical system: spherical glass lens group
Curvature: ≤ 1mm @ 5m.
Operating Voltage: DC 5V
Laser class: Ⅲ a
Operating temperature: -10 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 80 ℃
Dimensions: Φ16mm × 60mm
